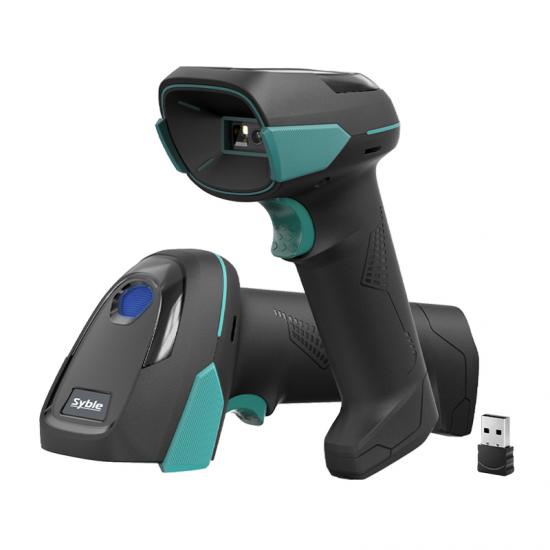

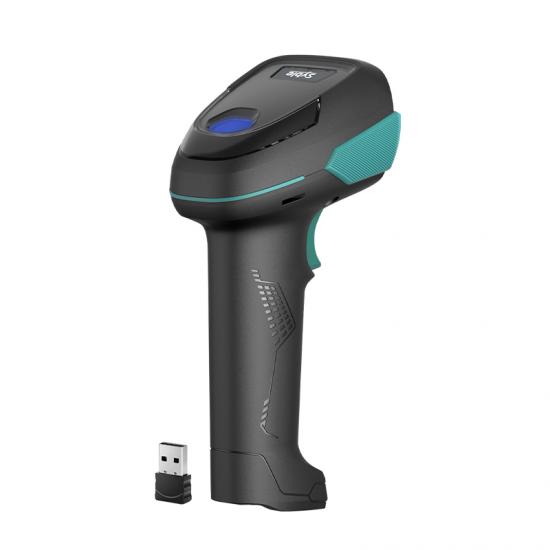

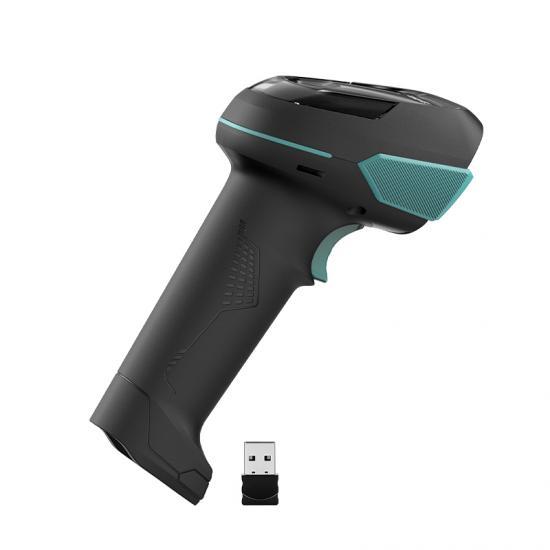

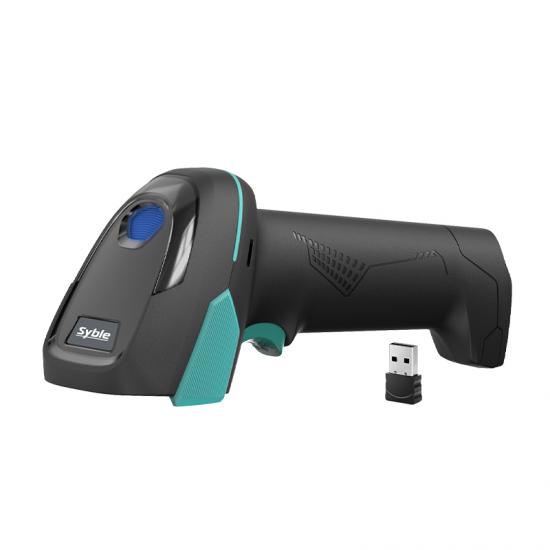

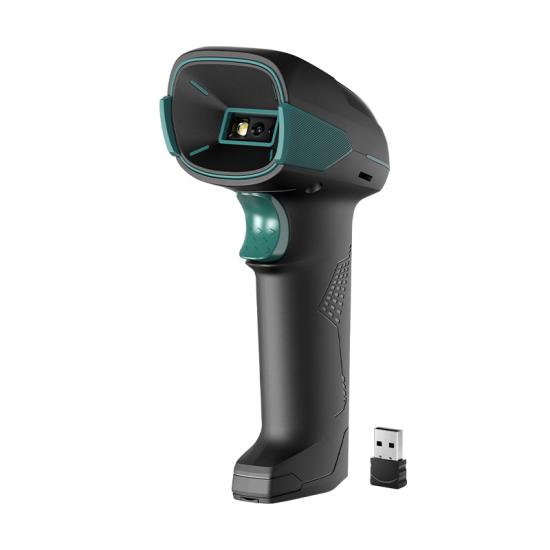

100M Wireless Transmission 2D Wireless Handheld Barcode Scanner

Performance Parameters

Light source type

White lighting, green aiming light

Decoding capability

1D:Codabar、Code39、Code32Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11Code128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBarLimited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

2D: Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode.Aztec、HANXIN.

Scanning principle

Imaging CMOS

Resolution

640*480

Trigger mode

Manual scan / continuous scan / auto-sensing scan

Scan Angle

Rotation angle360°，elevation angle±65°，deflection angle±65°

Scanning depth of field

EAN 13 55mm-300mm(13mil)

Code39 60mm-180mm(5mil)

QR Code 75mm-190mm(15mil)

Code 128 50mm-160mm(5mil)

Bit Error Rate

1/5million

Contrast

≥20%

Communication Interface

Receiver：USB-HID、USB-COM  Bluetooth：HID、BLE mode

Wireless communication method

Pairing dedicated receiver：2.4G communication;

Pairing mobile bluetooth device: bluetooth communication

Wireless communication distance

Open distance：100 meters

Receiver

Dedicated receiver; Android/IOS mobile bluetooth communication

Electrical Parameters

Voltage

DC5V±5%

Working Current

210mA

Standby current

0mA(battery power is cut off in standby mode)

Lithium battery

2200mAlithium battery

Continuous working time

Scanner scans continuously for 1S，working time is 7 hours/ scanning number is 2.5W times

Charging time

4-5 hours

Charging method

Type-C interface，plug in and charge directly

Physical Parameters

Scanner size

173*67*79MM

Material

ABS+PC

Charging cable standard

0.8m

Environmental Parameters

Working temperature

-20℃~+50℃

Storage temperature

-40℃~+70℃

Working humidity

5%~95%（no condensation）

Ambient light

0~100000LUX

Drop resistance

Can withstand 1.5m free fall
