2D Wired Handheld Barcode Scanner with Coss Laser Positioning

2D Wired Handheld Barcode Scanner

XB-D70 is a 2D wired barcode scanner.It uses a 1.2G ultra-high frequency chip and a global exposure scanning module.which can be applied in various scenarios to quickly and accurately read wrinkled and damaged barcodes.Ideal for retail stores, couriers, warehouses, etc.

Product Feature

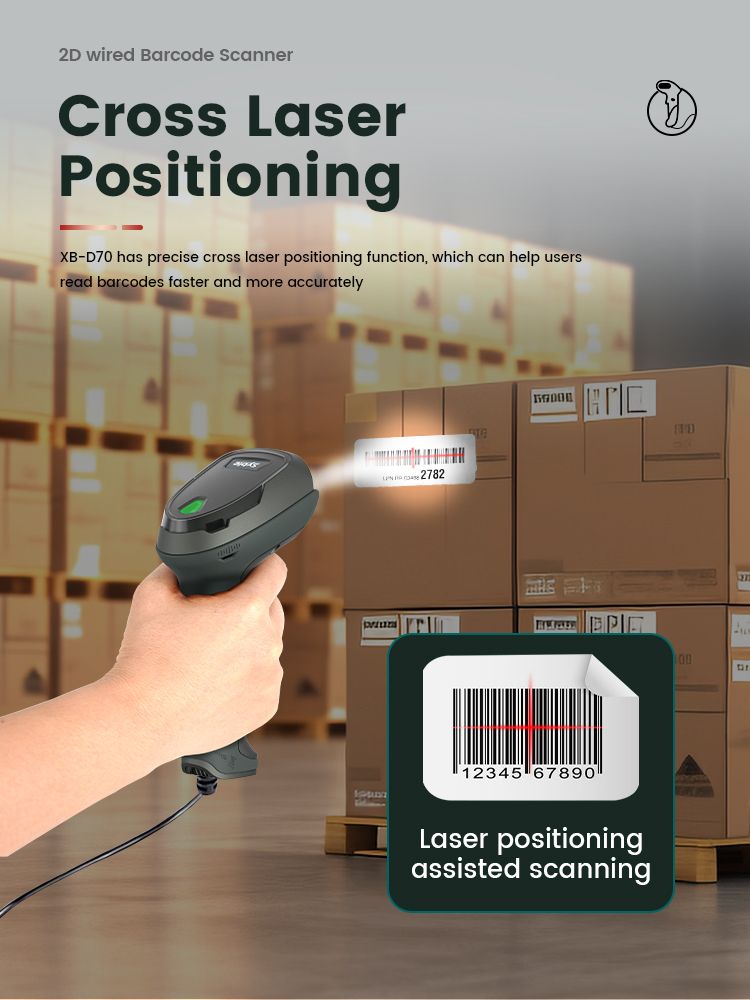

• Precise cross-laser positioning helps users read barcodes faster and more accurately

• Plug and play, no need to install any drivers, and compatible with all computers and POS devices on the market. Support Windows, Android, Linux, and IOS

• Utilizes a 1.2G ultra-high frequency chip and a global exposure scanning module,which can be applied in various scenarios to quickly and accurately read wrinkled and damaged barcodes.The scanning speed  up to 120FPS, and the movement tolerance up to 2 m/s

• With  high-performance CMOS sensor and professional two-dimensional lens, the scanning depth of field up to 400MM.

• Based on 2D CMOS principle ,it supports all common 1D and 2D（QR） codes. It can easily read 1D and 2D codes on paper and screen

•  Adopting the unique dual-sound chamber design, the indication sound is loud and can easily cope with various noisy environments.

• Support USB-HID, USB-COM, RS232 interfaces. Supports secondary development, and can provide technical support and SDK packages.







  Specification

  Performance Parameters
  Light source type	Green LED aiming light,white LED illumination
  Decoding capability	1D:Codabar,Code 39,Code 32,Pharmaceutical (PARAF),Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post. 2D:Codeblock A,Codeblock F,PDF417,Micro PDF417,GS1 Composite Codes,QR Code,Data Matrix,MaxiCode,Aztec,HANXIN.
  Decoding capability	Imaging CMOS
  Resolution	640pixels (H) x480pixels (V)
  Trigger mode	Manual scan/continuous scan/auto-sensing scan
  Scan Angle	Rotation angle 360°,elevation angle ±65°,deflection angle ±65°
  Field of view	Horizontal 34°,Vertical 28°
  Scanning depth of field	EAN 13 55mm-400mm(13mil) Code39 50mm-220mm(5mil) QR Code 75mm-260mm(15mil) Code 128 65mm-190mm(5mil)
  Bit Error Rate	1/5 million
  Contrast	≥20%
  Communication interface	USB-HID，USB-COM，RS232
  Electrical Parameters
  Voltage	DC5V±5%
  Working current	245mA
  Environmental Parameters
  Working temperature	-20℃ - 50℃
  Storage temperature	-40℃ - 70℃
  Working humidity	5%~95%(no condensation)
  Ambient light	0~100000LUX
  Drop resistance	Can withstand 1.5m free fall
  Physical Parameters
  Scanner size	181*68*85MM
  Material	ABS+PC
  Charging cable standard	2 meters
