Item NO.:
XB-6208Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black/greyShipping Port:
GuangzhouLead Time:
7-10 days
Model No: XB-6208
Syble XB-6208, Imager CMOS 2D (QR PDF417 DM) Barcode Scanner, Supports Screen and Paper 1D &2D Bar Code. Plug and play ,easy to set up and quickly match. 2D imager barcode scanner is widely Used in Hospital ,Logistics,Library,Mall,Pharmacy,Warehouse etc.
Product Feature:
1.New decoding chip to interpret various 1D codes/QR codes
2.Scan WeChat, Alipay barcode
3.QR code reader supports Chinese two-dimensional code direct transmission
4.Plug and play, easy to set up, and can be used quickly with other office equipment
5.Wire life is longer lasting
6.Ergonomic design: unique appearance design, simple yet stylish.
Specification
|
Model Number |
XB-6208 |
|
Performance Parameters |
|
|
Light Sources |
617nm LED Aimer,White LED |
|
Supported Symbologies |
1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5. 2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode，HanXin Code. |
|
Scan Type |
Image CMOS |
|
Resolution |
640*480 |
|
Scan Method |
Manually/Continuous/Automatic inductive scanning |
|
Scan angle |
Yaw ±55°, Rotation 360°, Pitch ±55° |
|
Contrast |
≥20% |
|
Precision |
≥5mil |
|
Depth of scan field |
EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL) |
|
Error Rate |
Less than 1/5 million |
|
Interface |
USB-HID,USB-COM,RS232 |
|
Physical Parameters |
|
|
Dimensions |
102mm*71mm*177mm |
|
Weight |
185g |
|
Material |
ABS+PC |
|
Cable Length |
1.8M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Ambient lighting |
0~100000LUX |
|
Relative Humidity |
5%~95%（Non-condensing） |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
170mA |
|
Standby Current |
USB 25mA; RS232 2uA |

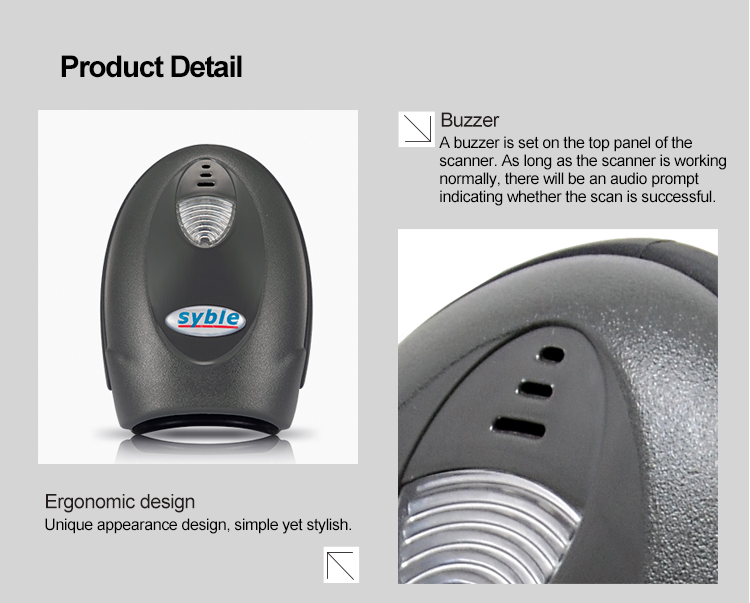

Product Overview:
Product Size :
FAQ
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q3: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q4. What’s the warranty policy for the barcode scanners? Syble provide 1 month replacement and 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order. Q5. What Value-added services can be provided: 1.Provide all technical documents as required 2.Provide the necessary professional training online or offline 3.Provide free maintenance technology and spare parts chargeable under out of warranty
|
