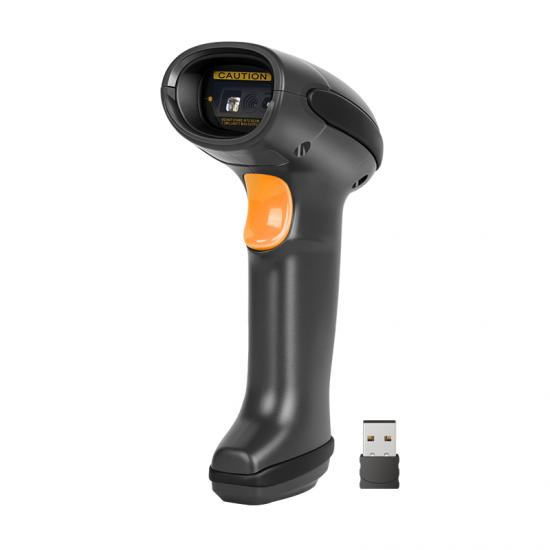

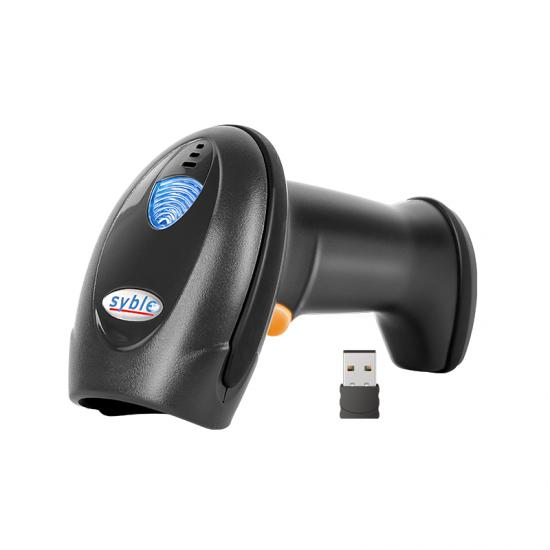

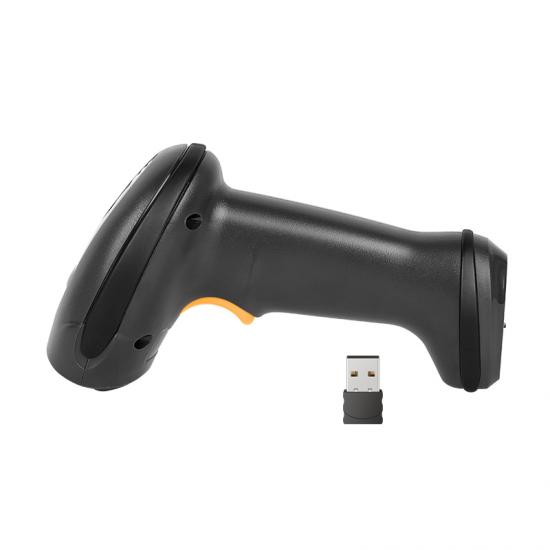

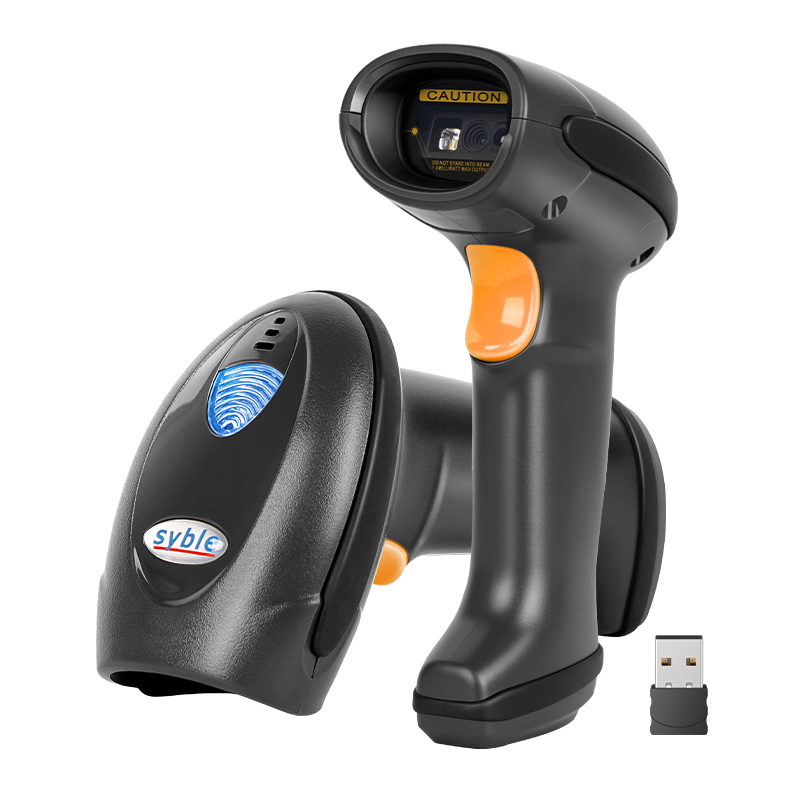

2D Wireless Handheld Barcode Scanner Whole Sale Factory 2.4G Bluetooth Wireless Reader QR code Reader

Performance Parameters

Light Sources

617nm LED Aimer, White LED

Supported Symbologies

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey,

GS1 Databar, GS1 Composite Code, Code 11, Industrial 25,

Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Micor PDF417, Aztec, Maxicode, HanXin code.

Resolution

640*480

Scan Method

Manual/Continuous/Automatic Scanning

Scan angle

Yaw ±55°,Rotation 360°,Pitch ±55°

Precision

≥5mil

Contrast

≥20%

Depth of scan field

EAN13    50-200MM(13MIL);

QR       25-240MM(20MIL);

PDF147   30-130MM(6.67MIL).

Error Rate

Less than 1/5million

Interface

USB-HID

Wireless Communication

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0

Wireless transmission distance

30-50 meters (open distance)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored.Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Gun Pairs One Receiver

One scanner paired with a Bluetooth mobile device

Electrical Parameters

Voltage

DC5V±5%

Operating Current

When not scanning code ≥26mA;

when scanning code ≥280mA

Standby Current

0mA (Standby is to cut off battery power)

Lithium battery

2200mA

Battery Working Time

7h

Charging Time

5h

Charging Model

Square USB charging cable, plug straight charge

Physical Parameters

Dimensions

102mm*71mm*177mm

Weight

223.9g

Material

ABS+PC

Cable Length

1.2m

Environmental Parameters

Operating Temperature

-20℃~+50℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete
