Item NO.:
XB-6008RBPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guanghzhou/ShenzhenLead Time:
7-10daysXB-6008RB which is very high cost-effective 2D 2.4G bluetooth wireless barcode scanner is new product of Syble barcode scanner manufacturer. New decoding chip, interpretation of various 1D and 2D barcodes. High-speed and accurate, it can scan not only paper codes but also screen codes. Fast charge and long endurance, built-in long-life battery, after fully charged, it can work continuously for 6 hours. The housing case of the scanner is covered with thick PS+ABS material, withstands multiple times 3m drops to concrete, very solid. XB-6008RB are the best assistant in supermarket, library, hospital, pharmacy, express, retail store, warehouse and other industries.
Features：
1. Can interpret various 1D/2D codes and support Chinese direct transmission of QR code
2. USB Bluetooth receiver supports plug and play, easy to set up and quickly match
3. Wireless bluetooth transmission distance: 30-50 meters (open area)
4. 512,000 characters can be stored in offline/inventory storage mode
5. Can be paired derectly with Bluetooth-enabled mobile phones, tablets and laptops
Model Name: XB-6008RB
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
617nm LED Aimer, White LED |
|
Supported Symbologies |
1D: EAN, UPC-A, UPC-E,Code 39, Code 93, Code 128, JAN/EAN-8, JAN/EAN-13, Codabar, Code 32 Pharmaceutical(PARAF), NEC 2 of 5, MSI, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, China Post(Hong Kong 2 of 5), Korea Post. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode,Micor PDF417, Codablock. |
|
Scanning Principle |
Image CMOS |
|
Resolution |
640*480 |
|
Scan Method |
Manual/Contnuous/Automatic inductive scanning |
|
Scan Angle |
Yaw 65°, Rotation 360°, Pitch 65° |
|
Field of view |
48°(H) * 36°(V) |
|
Precision |
≥4mil |
|
Contrast |
20% |
|
Movement tolerance |
0.4m/s |
|
Depth of scan field |
Code39(5mil): 4-10cm Code39(13mil): 7-20cm QR(15mil): 6-10cm |
|
Error Rate |
Less than 1/5million |
|
Interface |
USB-HID |
|
Wireless Communication |
Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 |
|
Transmission Distance |
30-50M (Open area) |
|
Storage Mode |
Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters. |
|
Pairing Mode |
One to One: One Scanning Gun Pairs One Receiver, Pairing Bluetooth Mobile Devices: Bluetooth BLE 4.0 |
|
Receiver: |
Delicated Bluetooth U-disk type receiver, Android/IOS mobile devices |
|
Physical Parameters |
|
|
Dimensions |
102mm*71mm*177mm |
|
Weight |
223.9g |
|
Material |
ABS+PC |
|
Cable Length |
1.2M |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance |
Withstands multiple times 3 meters drops to concrete |
|
lectrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
when not scanning code ≥26mA; when scanning code ≥300mA |
|
Standby Current |
0mA(Standby is to cut off battery power) |
|
Charging Mode |
Square USB charging cable, plug straight charge |
|
Battery Working Time |
5-6h |
|
Charging Time |
2-3h |
|
Lithium battery |
1200mA |
|
Charging Model |
Square USB charging cable, plug straight charge |
Leave A MessageSyble Long range 2D Wireless Handheld QR code Barcode Scanner with USB Base,read all common 1d and 2d barcodes from paper and mobile devices displays.
2D Wireless Barcode Scanner 2.4G Bluetooth USB Barcode Reader CMOS Barcode Scanner Manufacturer Factory Price

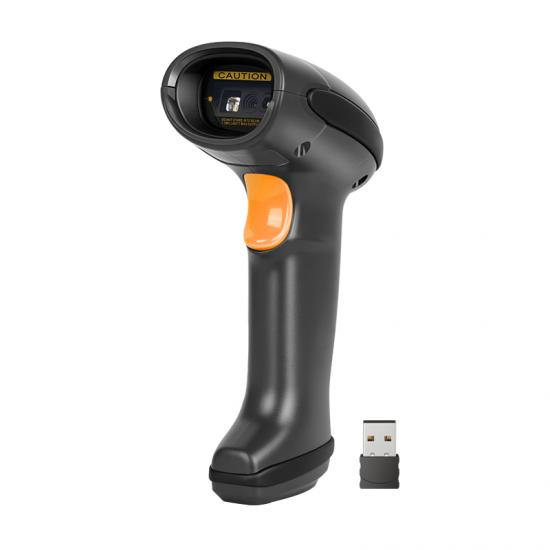

2D wireless barcode scanner with display screen 2.4G communications and bluetooth barcode scanner for retails store supermarket warehouse library pharmacy logistics.
The 2d bluetooth wireless barcode scanner is new design item, adopt high- technology contact type charging base,plug and play. It is 2.4G paired dedicated receiver, bluetooth BLE4.0. About 100m long transmission distance, stable wireless scanning.
The new design item 2D bluetooth wireless barcode scanner with charging base can read 1D& 2D barcode and upload the huge data quickly. Use directly with mobile phones/tablets/laptops with Bluetooth function.
The 2D wireless barcode scanner is our high cost-effective item, long transmission distance 30-50m(open area), read barcode quickly and stably. It is easy to use and pair.
The 2D barcode scanner is 2.4G wireless bluetooth barcode scanner, it can scan more 1D and 2D code, PDF417, QR Code, DM Code etc. Supporting for POS retails store supermarket warehouse library pharmacy logistics.
2D Barcode Scanner 2.4G Wireless Barcode Reader with USB Receiver XB-6208RB
