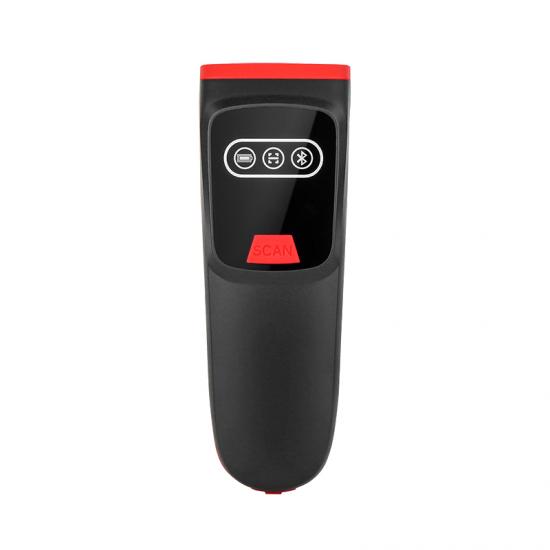

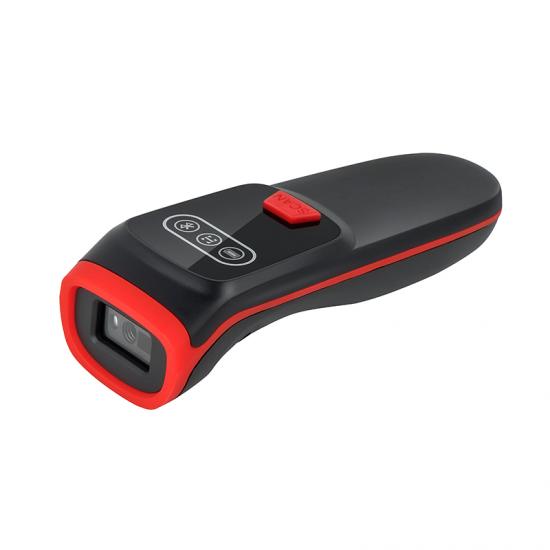

Mini 2D portable handheld 2.4G Bluetooth barcode scanner, wireless Barcode Reader for IOS Android Smart Phone Tablet
Item NO.:
XB-M80Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and orangeShipping Port:
Guangzhou/ShenzhenLead Time:
7-15daysXB-M80 is the 2D portable barcode scanner, 3-in-1 Bluetooth & USB Wired & 2.4G Portable Bar Code Reader. 2D QR Image Scanner Work with iOS, Windows, Android, which is very suitable for retail store, supermarket, warehouse, library, pharmacy, logistics and so on.
Features：
• High-tech chip, can read all kinds of 1D/2D codes
• Process body design, long-term grip without fatigue
• Wireless Bluetooth transmission distance: 100 meters (open area)
• 512,000 characters can be stored in offline/inventory storage mode
• Can be paired directly with Bluetooth-enabled mobile phones, tablets, and laptops
|
Specification |
|
|
Performance Parameters |
|
|
Light Sources |
617nm LED Aimer,White LED |
|
Supported Symbology |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISBN, ISSN, Cod a bar, Code 128, Code 93, ITF-4, ITF-6, Industrial 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBarTM(RSS),Code 39, MSI-Plessey, etc. 2D: Q.R Code, Data Matrix, PDF417, Micro PDF417, Micro QR, Aztec. |
|
Resolution |
838*640CMOS |
|
Scan Method |
Manual/Continuous/Automatic inductive scanning |
|
Scan Angle |
Yaw ±60°, Rotation 360°, Pitch ±60° |
|
Precision |
1D: >3mil, 2D: >5mil |
|
Contrast |
≥20% |
|
Depth of scan field |
30mm-310mm (EAN 13 13mil 13bytes) |
|
Error Rate |
Less than 1/5million |
|
Interface |
Receiver: USB-HID; Bluetooth: HID, BLE, SPP |
|
Wireless Communication |
Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth Devices: Dual Mode Bluetooth |
|
Transmission Distance |
30-50M (Open distance) |
|
Storage Mode |
Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 200K characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 200K characters. |
|
Pairing Method |
Pair by barcode |
|
Pairing Mode |
One to One: One Scanner paired with One receiver, One scanner paired with a Bluetooth mobile device. |
|
Prompt Function: |
Battery prompt; Connection prompt |
|
Receiving End |
Dedicated Bluetooth U disk receiver, Android/IOS mobile device |
|
Physical Parameters |
|
|
Material |
ABS+PC |
|
Cable Length |
1M |
|
Dimensions: |
46mm*38.5mm*128mm |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃ ~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5%~95% RH（Non-condensing） |
|
Ambient lighting |
0~100000LUX |
|
Drop/Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
|
Electrical Parameters |
|
|
Voltage |
DC5V±5% |
|
Operating Current |
when not scanning code ≥26mA; when scanning code ≥200mA |
|
Standby Current |
0mA(Standby is to cut off battery power) |
|
Battery Working Time |
Continuous work for 5 hours; Intermittent work for more than 9 hours. |
|
Charging Time |
3-3.5h |
|
Lithium battery |
1000mA |
|
Charging Model |
Type C USB charging cable, plug-in straight charging. |
FAQ
|
Q1: Is OEM or ODM available? Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service. |
|
Q2: How about the quality? Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc. |
|
Q3: How to control the performance stable? Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery. |
|
Q4. What’s the warranty policy for the barcode scanners? Syble provide 1 month replacement and 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order. Q5. What Value-added services can be provided: 1.Provide all technical documents as required 2.Provide the necessary professional training online or offline 3.Provide free maintenance technology and spare parts chargeable under out of warranty |
