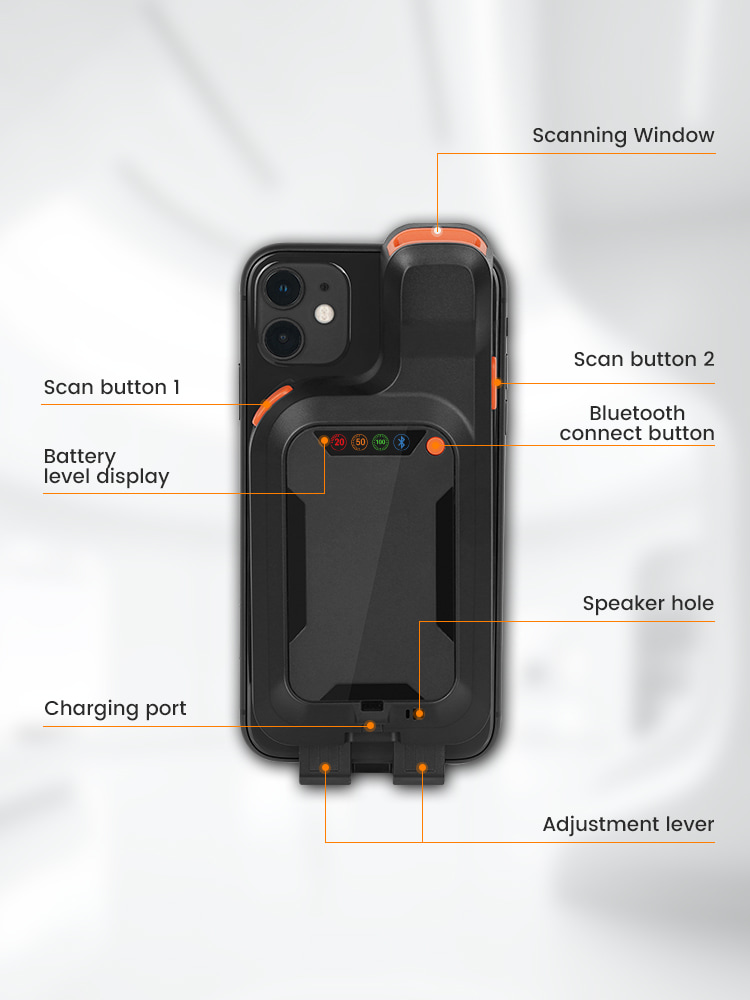

2D Wireless Barcode Scanner Bluetooth Clip-on Scanner Back Clip for Phone QR Code Reader CMOS Wireless Barcode Scanner

Specification

Performance Parameters

Light Sources

617nm LED Aimer, White LED

Supported Symbologies

1D: UPC-A, UPC-E,Code 39, Code 93, Code 128, EAN-8, EAN-13, Codabar, Interleave 2 of 5, ISBN, ISSN, MSI-Plessey, Code 11, Industrial 25, IATA25, Matrix 2 of 5.

2D: QR Code, Data Matrix, Micro QR, PDF417, Micro PDF417, Aztec.

Scanning Principle

Image CMOS

Resolution

640*480

Scan Method

Manual/Continuous/Automatic inductive scanning

Scan Angle

Yaw 45°, Rotation 360°, Pitch 45°

Field of view

48°(H) * 36°(V)

Precision

≥5mil

Contrast

≥20%

Depth of scan field

Code39(4mil): 4-10cm

EAN-13: 4-25cm

QR code(15mil): 2-170cm

Error Rate

Less than 1/5million

Interface

Receiver: USB-HID; Bluetooth: HID, BLE, SPP

Communication Mode

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Dual-mode Bluetooth

Transmission Distance

100M (Open area)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range,

the data is automatically stored. Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode,

storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Pairs One Receiver,

One scanner paired with a bluetooth mobile device.

Prompt Function

1. power prompt  2. connection prompt

Receiver:

Delicated Bluetooth flash drive receiver, Android/IOS mobile devices

Physical  Parameters

Dimensions

153mm*36mm*35.5mm

Weight

120g

Material

ABS+PC

Cable Length

1M

Environmental Parameters

Operating Temperature

-20℃ ~50℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95% RH（Non-condensing）

Ambient lighting

0~100000LUX

Drop/Shock Resistance

Withstands multiple times 3 meters drops to concrete

lectrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA; when scanning code ≥250mA

Standby Current

0mA(Standby is to cut off battery power)

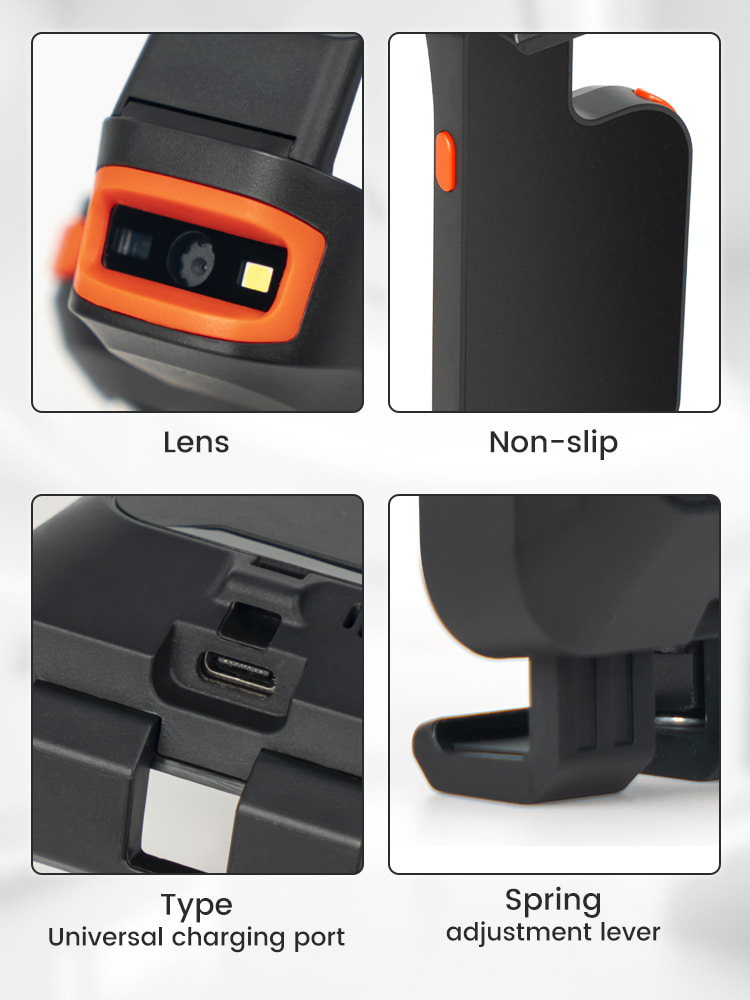

Charging Mode

Square USB charging cable, plug straight charge

Battery Working Time

12h

Charging Time

3-4.5h

Lithium battery

3000mA

Charging Model

Type C charging cable, plug-in direct charging
